Rapid Soft Cover CF 8" 5k# (8 L38 / RRB 90x50mm)

Rapid Soft Cover is developed by Reál Marine AS for the protection of flanges. The sandwich solution consists of a 5mm layer of soft cellular rubber and a 4mm layer of hard PE plastic. The soft layer ensures a dust-tight and cushioning connection against the flange surface. The hard PE plastic on top protects against mechanical impacts, scratches, etc.

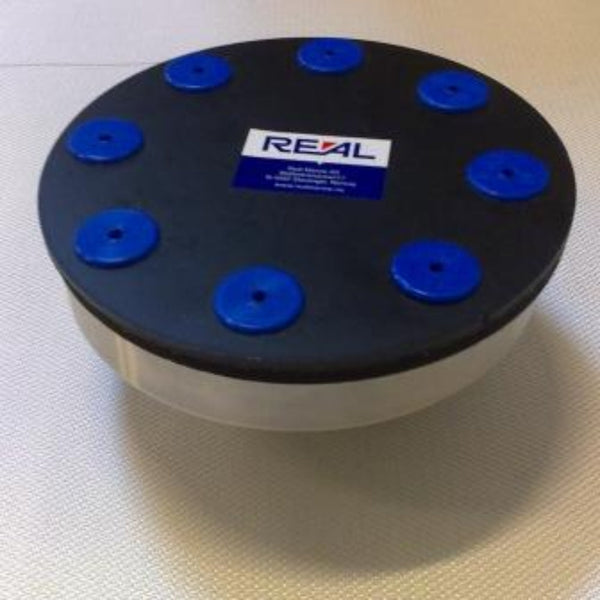

The flange protector can be supplied with two different fastening methods, either the push-fit plugs in the picture or our own Real Rapid Bolt. Both are supplied separately. To view the dimensions of the plugs, click here (the product page for the plugs will open in a new window).

Manufactured for virtually all flange types and sizes. For large ANSI flanges in heavy pressure classes, verify that sufficiently large plastic bolts are available. If it is not possible to find suitable bolts, the RSC covers can be made without bolt holes, i.e., fastened using nylon cable ties.

On RTJ flanges, the sealing surface may be raised, resulting in a gap between the protector and the flange. We can resolve this by adding an extra layer of 5mm foam (purchased separately). Customers may also choose to tape around the edges as extra protection against dust. For the largest flanges in very heavy pressure classes, the design is specifically reviewed due to this extra height of the RTJ surface.
