Spray Shield splash guard DN80 PN10 Teflon

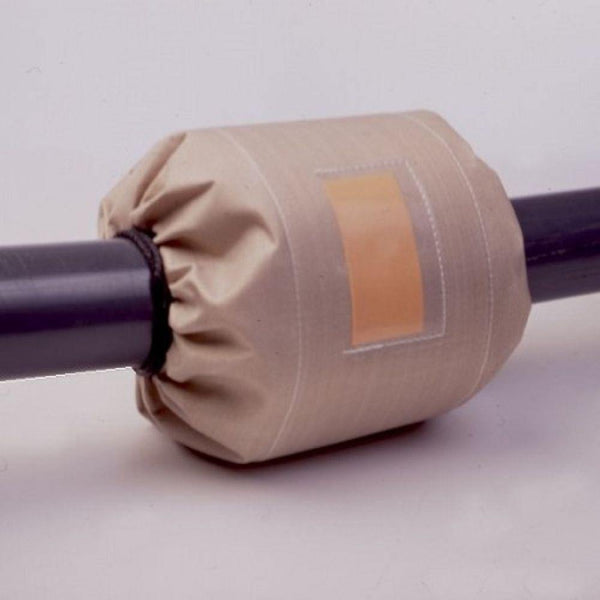

SAFECAP Flange Shield – 100% PTFE
The SAFECAP flange shield made of 100% pure PTFE is developed for maximum chemical protection in the most demanding operating environments. The product is ideal for the chemical industry, pharmaceutical sector, and offshore facilities where aggressive media and extreme temperatures place high demands on equipment and safety.
Resistant to the toughest chemicals

Thanks to its 100% pure PTFE composition, SAFECAP withstands exposure to hydrochloric acid, caustic soda, fluorine, oleum, and acids in general – including the most aggressive types. Protects personnel and facilities against uncontrolled leaks from flange connections.

Wide temperature tolerance and UV resistance
The product operates safely in a temperature range from -212 °C to +230 °C, and fully retains its properties during outdoor installation under UV exposure. Flexible and durable – for indoor and outdoor use.
Certifications

Bureau Veritas certified according to SOLAS 74, IMO MSC/Circ. 647, 851, 1321, and ISO 18770:2005
RINA certified for pressure test, temperature test, and tensile strength

10-year warranty on protective properties
Specifications

Material: 100% pure PTFE
Temperature range: -212 °C to +230 °C
Chemical resistance: Hydrochloric acid, caustic soda, sulfuric acid, hydrofluoric acid, oleum
UV resistant: Yes
Warranty: 10 years
